Thiết bị kiểm tra thời hạn tốt nhất của bia

Còn hàng

Model Model: F38-ME; Julabo - Germany

Giá

Liên hệ

Thanh toán an toàn

Hỗ trợ chuyên nghiệp

Đổi trả dễ dàng

Giao hàng tận nơi

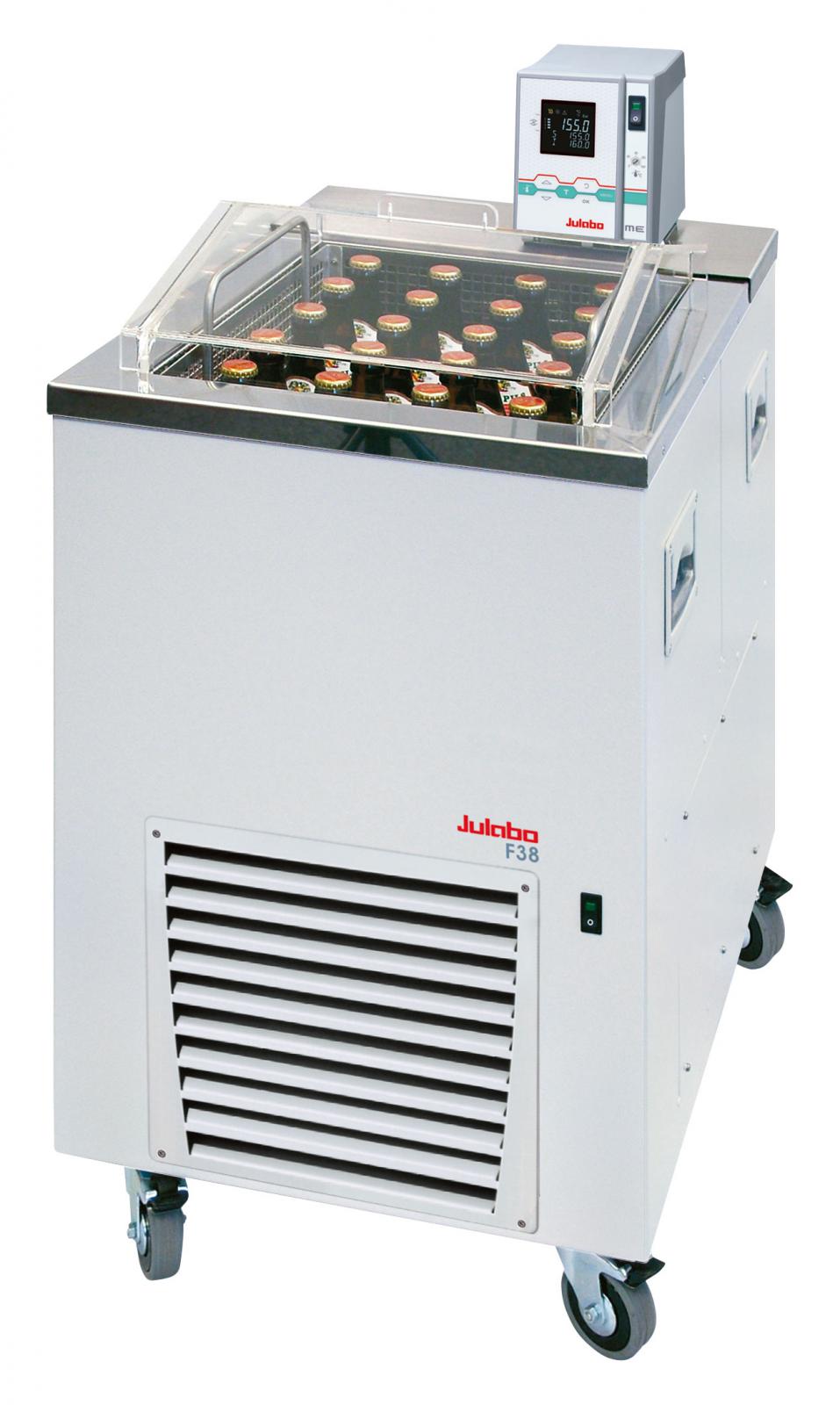

F38-ME Forcing Test Refrigerated-Heating Circulating Bath

Visco Bath for internal temperature applications

JULABO Visco Baths are used for precise temperature applications with capillary viscometers and density meters within the bath tank. The units offer high temperature accuracy and optimal temperature distribution throughout the bath. An integral cooling coil for cooling water is provided for temperature applications below or near ambient temperatures. The units are equipped with a holder for thermometers and therefore offer very good options for temperature calibration procedures and comparisons with accredited

thermometers.

Your advantages

- VFD COMFORT DISPLAY

- Keypad for setpoints, warning/safety values and menu functions

- PID3 cascade temperature control

- ATC3 3-Point-Calibration

- Pt100 External sensor connection for measurement and control

- SMART PUMP, electronically adjustable pump stages

- Early warning system for low liquid level (DBGM 203 06 059.8)

- Adjustable high temperature cut-out, visible via display

- RS232 interface for online communication

- Integrated programmer for 10 program steps

Technical Data

- Order No. 9162638

- Category: Beer Forcing Test Refrigerated-Heating Circulating Bath

- Working temperature range: -38 ... 80 °C

- Temperature stability: ±0.05°C

- Temperature Control: PID cascade temperature control

- Setting / display resolution: 0.01

- Integrated programmer 1x10 steps

- Temperature Display VFD

- Heating capacity: 2 (kW)

- Cooling capacity (Medium Ethanol)

20°C 0,92

0°C 0,66

-20°C 0,32

- Pump capacity flow rate: 11-16 (l/min)

- Pump capacity flow pressure (bar) 0.23-0.45

- Bath opening / bath depth (W x L / D): 35 x 41 / 27 cm

- Filling volume liters 45

- Refrigerant R404a

- External Pt100 sensor connection integrated

- Digital interface RS232

- Optional Profibus

- Ambient temperature 5...40 °C

- Dimensions W x L x H (cm) 46 x 70 x 89

- Weight (kg) 72

- Classification according to DIN12876-1 Classification III (FL)according to DIN 12876-1

- Order information Standard accessories (included): Stainless steel insert basket for 20 x 0.5 liter bottles Plexiglass bath cover.

- Cooling of compressor Air

- Power requirement: AC 230V / 50Hz / 13A

Characteristics

- A perfect view: Ample, easy to read VFD Comfort display for simultaneous display of 3 values, warning functions, high temperature cut-off, pump stages (resolution 0.01 °C)

- Pump stage and liquid level: Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT

- Comfortable and detailed: Comfortable keypad with additional menu functions for pump stages, calibration, control parameters, programmer, warnings, etc.

- For higher demands: PID Temperature control with drift compensation and adjustable parameters, improved temperature stability for external applications, temperature stability ±0.01 °C internal, <±0.1 °C external

- Highest measuring accuracy: Absolute Temperature Calibration’ for manual compensation of a temperature difference, 3-point calibration

- Control from the external application: External Pt100 sensor connection for precise measurement and control directly in the external application

- Serial connection: RS232 interface for PC connection, e.g. for data communication and recording of measured values

- Easy program control: Integrated programmer for the execution of time and temperature dependant profiles, 1 temperature profile with 10 steps max., with real time clock

- Clever pump system: Reliable and consistent pump capacity, electronically adjustable pump stages

- Consistent cooling capacity: Easily removable venting grid for quick and easy cleaning

- 100 % Cooling capacity: ‘Active Cooling Control’ for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures
