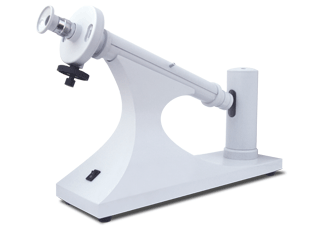

WXG-4 manual polarimeter is ideal for determining concentration levels of samples for applications in the medical, pharmaceutical, educational and cosmetic industries etc.
Easy Measurement:
The polarimeter with 589 nm sodium lamp. Switch on the power, the polarized light beam will immediately radiate to the polarizer,
filter. You can observed distinct visual fields through eyepiece.
Put the sample cuvette into measuring field chamber, and rotate the vernier knob, you will find an equal brightness. Reading and
recording the measured value from vernier scale, the testing is completed.
Specific Optical Rotation Measurement:
Specific optical rotation is constant value of substance. Uses 100mm sample cuvette, and control sample at 20 Degrees Celsius, you can
measures the sample of Specific Optical Rotation.
International Sugar Scale:
According to international sugar scale, put 26 grams pure sugar into solution, the angle of rotation of solution is 34.626. By above rule, you can calculate the purity of sugar.
Accessories: 100 and 200mm Tubes, Sodium Lamp
Specifications:
Model: WXG-4
Measuring Range: -180° ~ +180°
Scale Value: 1°
Vernier: 0.05°
Magnifier: 3x
Light Source: Sodium Lamp
Wavelength: 589.44nm
Round Cuvettes: 100 or 200mm
Power Requirements: AC 220V/50Hz
Dimensions: 500(L)×135(W)×330(H)mm
Weight: 6.5kg
