Bộ dụng cụ chưng cất xác định Formaldehyde

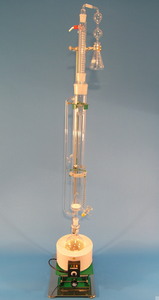

Perforator Extraction Apparatus 1000 ml (DIN EN 120:1992)

HLL - Germany

A Perforator is a extraction apparatus to perform a intensive liquid-liquid extraction. In this process the solvent is vaporised, condensed in a return condenser in order to drip continuously onto the extraction material, that is solved in a liquid; immiscible with the solvent.

This extraction procedure is named Perforator-Method, which is applied to determinate a formaldehyde content in unpainted wood based panels. Formaldehyde is extracted from the assay with boiling toluol and given into solution with distilled and demineralised water. The formaldehyde content of the aqueous solution can be analysed photometrically by the Acatylacetone-Method.

Normative references

The determination of formaldehyde content of unpainted wood based panels is standardised by DIN EN 120:1992.

It prescribes the extraction method and the following quantitative analysis of formaldehyde in the wood assays.

1 Perforator

1.1 (Art. SON02269) Glass Extraction Apparatus for determination of formaldehyde content according to DIN EN 120:1992 complete glass apparatus consisting of: cooler, adaptor, filter cartridge, perforator top piece, ball tube, Erlenmeyer flask, transition piece, round bottom flask

1.2 (Art. 010906G) Heating mantles HME/G two heating zones 300 watt, with power controller, plasticcoated metal casing with high chemical resistance, quick heating-up period: 500 ml water boil in app. 10-15 min.,

HLL- instruction manual

2 Subframe

2.1 (Art. SON0226921) Stainless steel stand H-foot-stand, 490*540mm, with height compensation screw, height 1500 mm, high stability assured, complete with 4 clamps and muffle

2.2 (Art. 0511040) Hoisting platform 240x240mm, aluminium, for heating mantles HME/G

Optional recommended:

2.3 (Art. 1410000) Fire protection tray light metal, 445x445x130mm

3 Accessoires

3.1 (Art. 3430812) Flexible tube, red, even Ø 8x12 mm, natural rubber

3.2 (Art. 0525002) Flow indicator/PMP blue

3.3 (Art. 7030045) Clamp/CrNi, for NS 45

3.4 (Art. 7030029) Clamp/CrNi, for NS 29

3.5 (Art. 1746007) Joint sleeves/PTFE NS 29/32 temp-resistant -200...+260°C, 10 pcs.

3.6 (Art. 1746014) Joint sleeve/PTFE NS 71/51 temp-resistant -200...+260°C, 10 pcs.

3.7 (Art. 7010045) Joint sleeve/PTFE NS 45

3.8 (Art.89363021) Insulating tape, Isokeram chrome steel-reinforced, 30 wide, 2 thick mm

3.9 (Art. 0521003) Muffel, Laboral-alloy Ø 12x16 mm
